This product is suitable for indoor AC 50HZ, rated voltage 12KV
system, as transformer and other power equipment overload or short
circuit protection components. High voltage fuse with full range protection is a new type of
current limiting fuse, it can reliably break any fault current
caused by melting current to the rated breaking current 50KA, it is
the use of current limiting fuse has a higher breaking ability, and
non-current limiting fuse has a better small current protection
characteristics, combined with the different characteristics of the
two fuses. The good protection characteristic of full range breaking is
obtained.

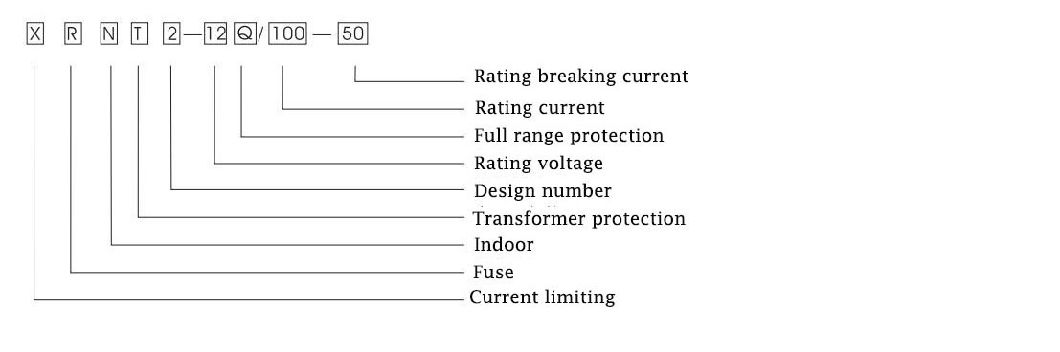

| China model | Rating voltage (KV) | Rating current (A) | Rating current of fusible core (A) | ØD*L | Rating breaking current |
| XRNT2-12Q(FFLDJ) | 12 | 63 | 10, 16, 20. 25, 31.5, 40, 50, 63 | Ø76*292 | 50 |
| 100 | | Ø76*442 |
12KV product insulation level : 42kv |

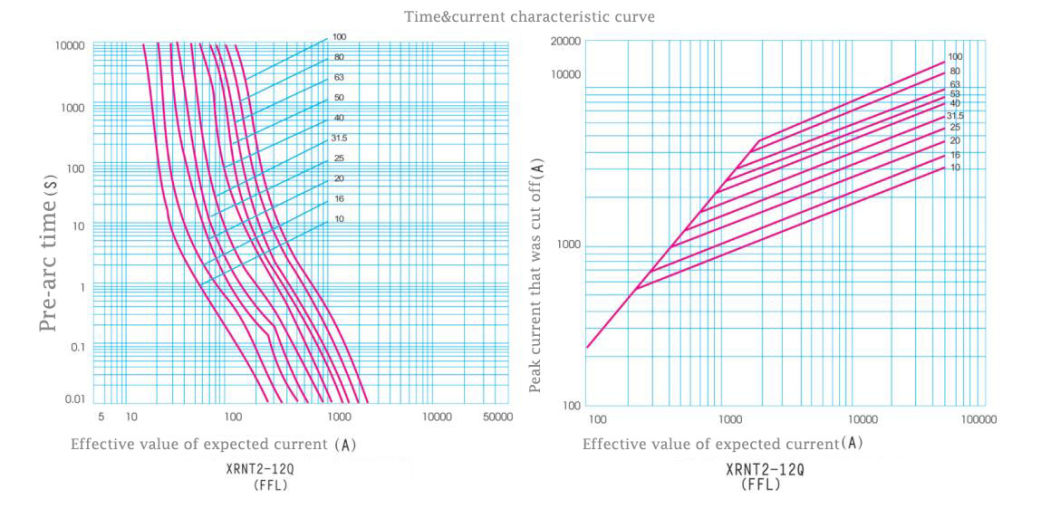

Time-current characteristics of high voltage current limiting fuse
for full range protection
Xi 'an Wuhuan Special Fuse Co., Ltd. is a high-technology
manufacturer company established by Wuhuan Electric Group in Xi
'an, Shaanxi Province, China's high voltage electric production
base in 2000. It Mainly engaged in the development, design,
manufacture, sales and service of fuses and other high voltage
appliances. The main products of the company are high-voltage
current limiting fuses, which are used in indoor 50HZ/60HZ power
systems with rated voltage of 3.6-40.5KV. As American power
transformer, Europe type power transformer, high voltage motor,
voltage transformer, power capacitors and other electric equipment
overload and short circuit protection, and in other appliances such
as: load switch, vacuum contactor etc, protection circuit and
complete sets of electrical equipment from damage by excessive
overload current and short circuit current. The company has
high-quality technical personnel, professional fuse manufacturing
and testing equipment and advanced modern enterprise management
concept, its product categories, production scale and sales revenue
are growing at a high speed. Wuhuan Company implements ISO9001:2000
quality system standard, uses MCAD development and design, with the
help of Intuitive ERP and advanced testing equipment to ensure the
reliability of production and high quality products. All the
products have passed the type test of the national high voltage
electrical apparatus quality supervison and inspection center ,and
are in line with the national GB/T15166.2 standard and IEC60282
standard of the International Electrotechnical Commission.New products:
SDLDJ and SFLDJ & SDMDJ full-range protection high-voltage current
limiting fuses developed by our company are mainly used for
overload and short-circuit protection of domestic power generation
transformers. This series of products complete specifications,
rated current up to 100A, products have passed the national high
voltage electrical quality supervision and inspection center type
test.
Quality standards of the company:
We fully implement GB/T15166.2 and IEC60282(International
Electrotechnical Commission) technical standards, product quality
in line with the British BS standard, German DIN standard. Rigorous
design, advanced technology, timely service, the company's quality
system for the implementation of the quality policy to provide a
full guarantee.
Our products:
1.High voltage fuse for overload protection of oil-immersed
transformer
2.High voltage current limiting fuse for backup protection of
oil-immersed transformer
3.High voltage current limiting fuse for power transformer
protection
4.High voltage current limiting fuses for protection of 40.5kv
transformer
5.High voltage current limiting fuse for full range protection of
power transformer
6.High voltage current limiting fuse for protection of high voltage
motor
7.High voltage current limiting fuse for vacuum contactor fuse
(F-C) combination appliance
8.High voltage current limiting fuse for protection of voltage
transformer
9.High voltage current limiting fuse for power capacitor protection
10.XRNT-15.5Q Full-range high-voltage current limiting fuse for
transformer protection (integral)
11.Full range high voltage current limiting fuse for XRNT-40.5Q
transformer protection (integral)
