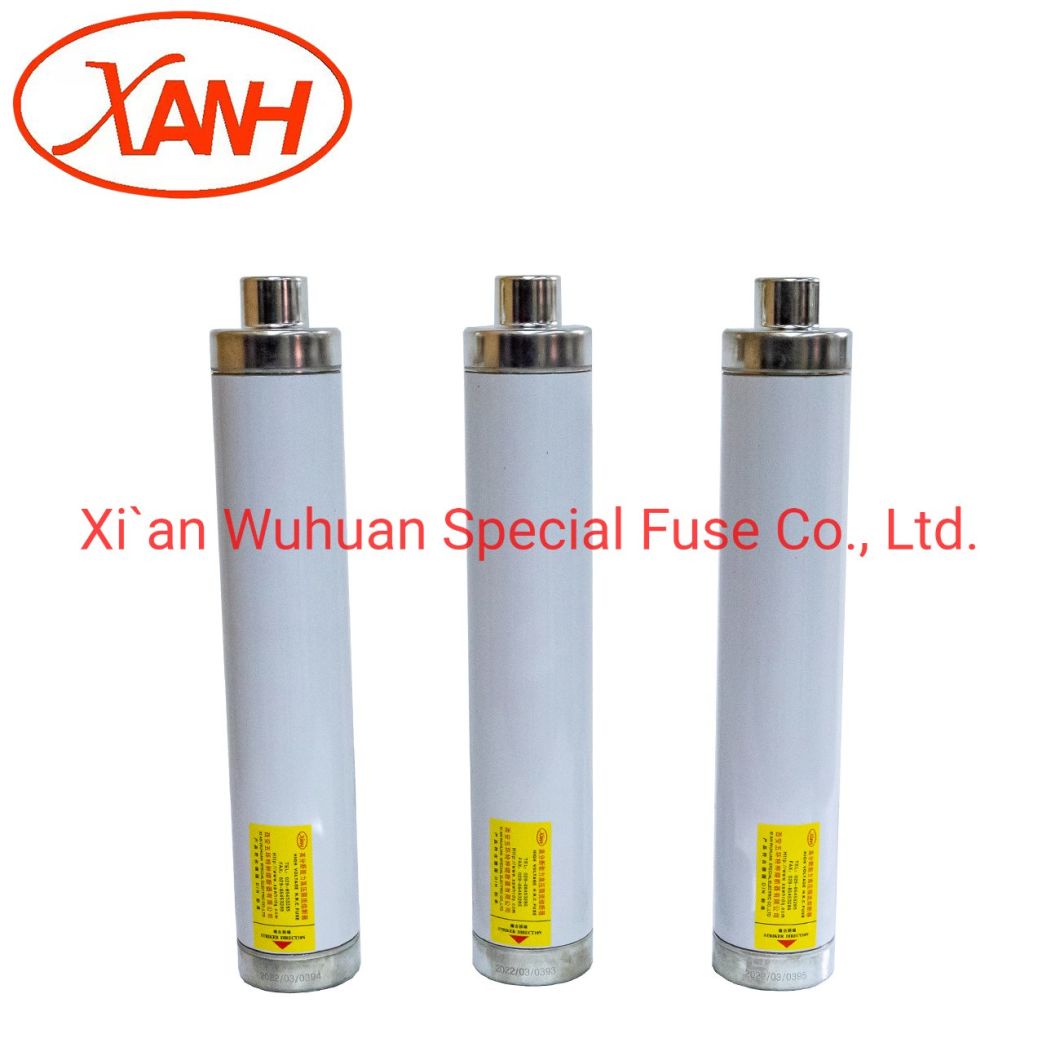

Fuse Xrnp1 High Voltage Current Limiting Fuse 10kv 0.5-3.15A High Voltage Fuse

Product Description

This fuse is suitable for indoor AC 50HZ, rated voltage 3.6KW, 7.2KV and 12KV system, it can be used with other protective electrical appliances (such as load switch, vacuum contactor, etc.), as high voltage motor and other power equipment overload or short circuit protection components. The fuse can reliably break any fault current between (3-5) times the rated current of the fuse and the rated breaking current of 50KA under specified service conditions.

1. Model and meaning :
2. The dimension of plug-in type fuse :

Model number	Rated voltage(kV)	Rated current of fuse wire (A)	Plug-in type(ΦD*L)	Rated breaking current (kA)
XRNM1-3.6(WFFDJ)	3.6	50, 63, 80, 100	Φ51*255	50
		125, 160, 200, 250, 315, 355, 400	Φ76*255
XRNM1-7.2(WFLDJ)	7.2	25, 31.5, 40, 50, 63, 80, 100, 125	Φ76*292
		160, 200 , 250	Φ88*292
XRNM1-12	12	25, 31.5, 40, 50, 63, 80, 100, 125, 160	Φ76*403
		160, 200, 225, 250	Φ88*403

Model number	A	B	C	D
XRNM1-3.6	415	285	110	417
XRNM1-7.2	450	322	150	454
XRNM1-12	540	433	200	565

3.The dimension of busbar fuse:

Domestic model number	International model number	Rated breaking current (A)	Size	Rated breaking current
XRNM1-7.2	WDNHO	25, 31.5, 40, 50, 63	Φ51*403	50KA
	WFNHO	80, 100, 125, 160, 200	Φ76*403
	WKNHO	224, 250, 315	Φ76*403
		355, 400	Φ88*403
XRNM1-12		25, 31.5, 40, 50	Φ76*403
		63, 80, 100, 125, 160
		200, 224, 250	Φ88*403
