    XRNT1- 7.2kV 15.5kV 24kV 38kV Current Limiting Fuse For Power Transformer Protection

    Ask Lasest Price
    Brand Name : xawh
    Model Number : High-Voltage Current-Limiting Fuse for Power Transformer Protection XRNT1- 8.3kV 15.5kV 24kV 38kV
    Price : RMB 168-2878/Piece 1 Piece (Min. Order)
    Payment Terms : L/C ,D/P , T/T ,Western Union ,MoneyGram ,Paypal
    Supply Ability : 5000/Capacity per month
    Delivery Time : 10 weekdays
    • Product Details
    • Company Profile

    XRNT1- 7.2kV 15.5kV 24kV 38kV Current Limiting Fuse For Power Transformer Protection

    High-Voltage Current-Limiting Fuse for Power Transformer Protection XRNT1- 7.2kV 15.5kV 24kV 38kV

    Basic Info.

    Model NO.
    XRNT1-12/125-50
    Phase
    Single
    Installation
    Strut Type
    Function
    Protection
    Transport Package
    Carton
    Specification
    As standard

    Product Description

    Product Detail:

    It can be used indoor system of 50HZ and rated voltage of 3.6KV, 7.2KV,12KV,24KV,40.5KV:Used together with other switch facilities such as loading switches, vacuum contactors, it can protect electric transformers and other electric facilities against overloading or circuit break. It is also a necessary accessory for high-voltage switch.
    Technical Parameter

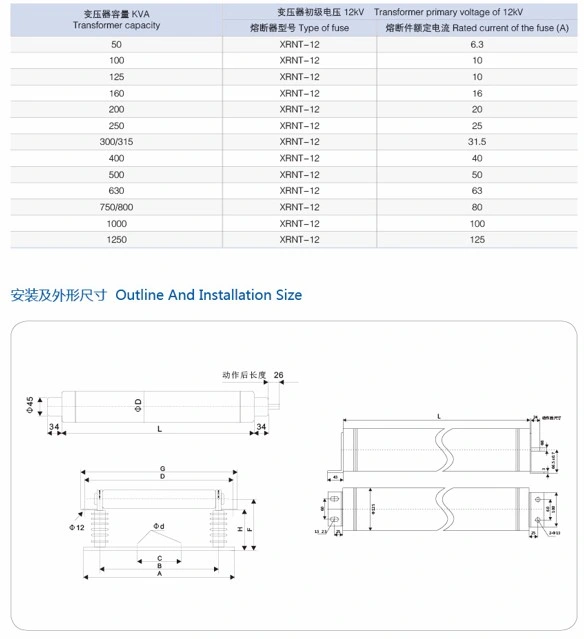

    High-Voltage Current-Limiting Fuse for Power Transformer Protection General selection guideline of fuse for protecting 12 KV transformer in the following table.Note: selection for transformer 7.2 kV or anther electric equipments contact the manufacturer please.
    High-Voltage Current-Limiting Fuse for Power Transformer Protection
    High-Voltage Current-Limiting Fuse for Power Transformer Protection
